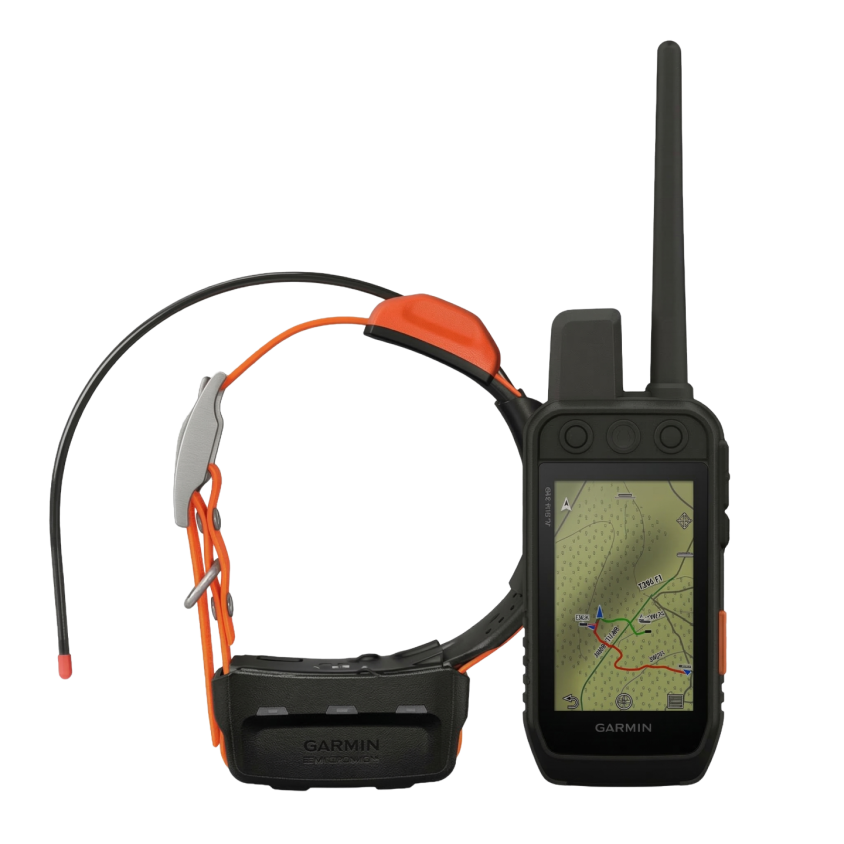

The Garmin Alpha 200 F T20 GPS Pack is a complete portable system, designed for dog tracking and training, integrating inReach® technology.
It is equipped with a large 3.5-inch capacitive color touchscreen and integrated TopoActive Europe mapping covering 47 countries, with free lifetime updates. This system allows tracking up to 20 dogs or hunters in real-time, with position updates every 2.5 seconds.
Training functions include 18 levels of stimulation (continuous and momentary). The device offers up to 20 hours of battery life, or 15 hours with inReach technology activated.
Technical Specifications
- Screen: Capacitive color touchscreen, sunlight-readable, 3.5 inches (282x470 pixels)
- Dimensions: 17 x 7 x 3.5 cm
- User Interface: New, focused on dog tracking (multiple profiles), simpler initial setup process
- SOS Button: inReach, with foldable aluminum protective flap
- Side Buttons: 3, user-configurable for quick and secure access to common actions
- Memory: 16 GB integrated + reinforced slot for microSD card (for additional mapping)
- Frequencies: 6 authorized and dedicated France frequencies to limit interference
- Antenna Connector: External VHF to connect more powerful antennas
- Antenna: Quad Helix GPS / GALILEO
- Sensors: Barometric Altimeter + 3D Compass
- Battery Life:
- Standard: Up to 20 hours
- With inReach activated: Up to 15 hours
- Battery: Li-Ion, user-replaceable
- Integrated Functions: Tone and Vibration
- Water Resistance: IPX7
- Tracking Capacity: Up to 20 dogs or hunters in real-time
- Position Update Frequency: Every 2.5 seconds
- Range:
- T5F / TT15F Collars: Up to 14.5 km
- T5F Mini and TT15F Mini Collars: Up to 6.5 km
- Collar Functions: Tracking and training (T5F/T5F Mini tracking only)
- Mapping:
- Integrated: TopoActive Europe (47 countries)
- Update: Free lifetime
- Compatibility: Garmin / Raster maps / CityNavigator / BirdsEye satellite maps
- Navigation Functions: Turn-by-turn indication / Waypoint / Track / Activity / Tracback / See and Go
- inReach Technology:
- Type: Integrated, satellite communication & SOS (IRIDIUM technology, 100% global coverage)
- Interactive SOS: 24/7, worldwide with acknowledgment of receipt, tracking ensured by GEOS to coordinate search and rescue
- Tracking: Real-time tracking of the Alpha 200i, from a specific page anywhere in the world
- Messages: Sending/receiving predefined or custom text messages (SMS / E-mails / Social Networks), 160 characters
- Weather: Satellite weather forecasts
- Safety Features:
- Device-to-device position sharing
- Emergency alert (connected Alpha to Alpha)
- Dog Movement Alerts: GeoFence (Zone) & Radius (distance)
- LED Activation: Collars remotely (for night or near roads)
- Training Functions:
- Stimulation Levels: 18 (continuous and momentary)
- Pre-determined Stimulations: Low, medium or high (from 1 to 6)
- Progressive Stimulations: 1 to 18
- Bark Detection: Means per minute, real bark counter, customizable alerts (set to different sensitivities, adapts to dogs and environment)
- Configurations: Custom training pages for more intuitive stimulation management
- Stopwatch: Competition stopwatch with quick access
Connectivity
- Integrated Technologies: WiFi, BT, ANT + and BLE
- Application Compatibility: Explore App & Explore Web (Alpha setup, receive/send messages/SOS via smartphone, online data storage Cloud)
- Device Compatibility: Tempe / Xero / DriveTrack ™ / Instinct® / Fenix (Dog direction and distance, InReach SOS and Message sending/receiving directly on the wrist)
- OS Compatibility: IOS - Android
