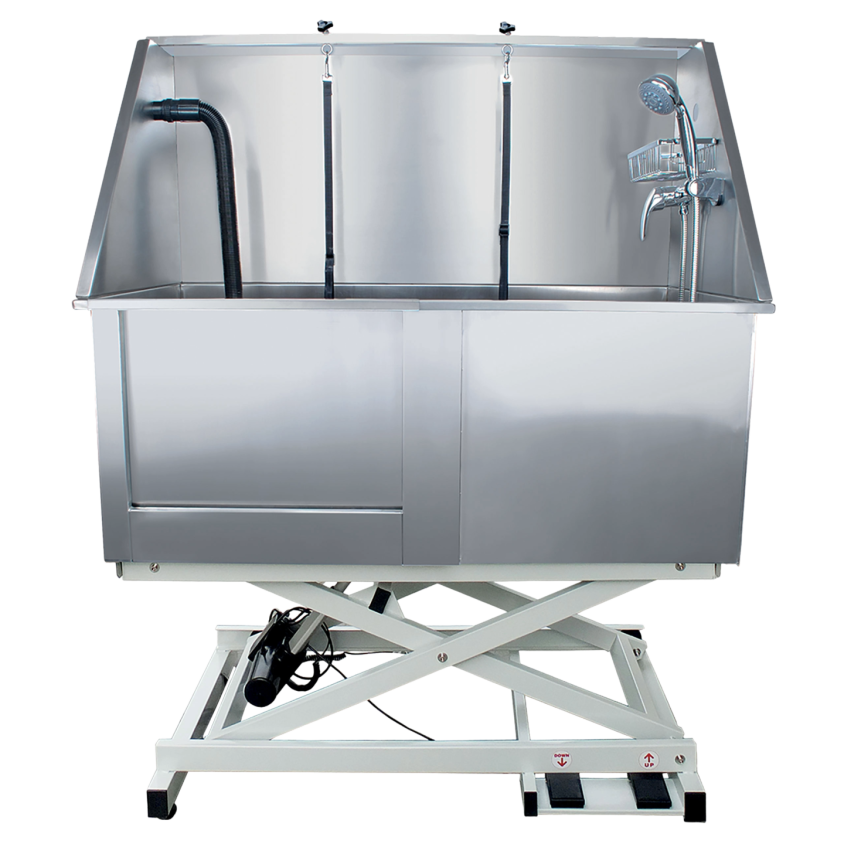

This large electric chassis tub is delivered with a stainless steel drain, a mixer tap, a hand shower, and a shampoo holder for grooming dogs and other animals.
On top, a restraint bar with two sliding rings allows the animal to be held during washing.

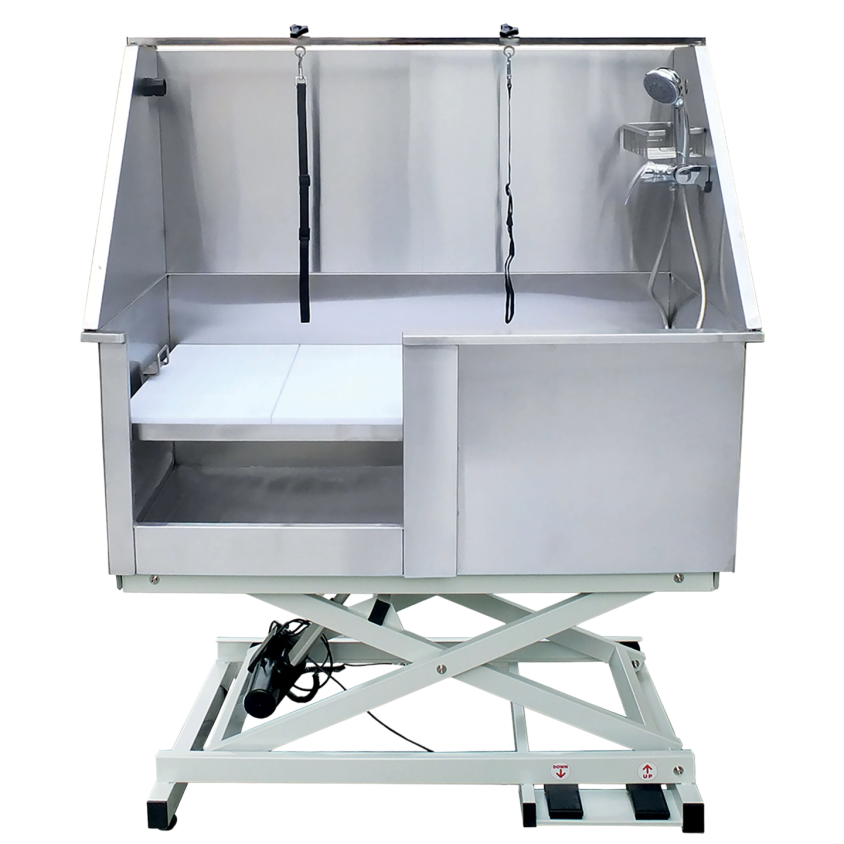

A four-element grating prevents the animal from slipping and allows it to drain easily.
A door slides laterally, facilitating animal access in the low position.

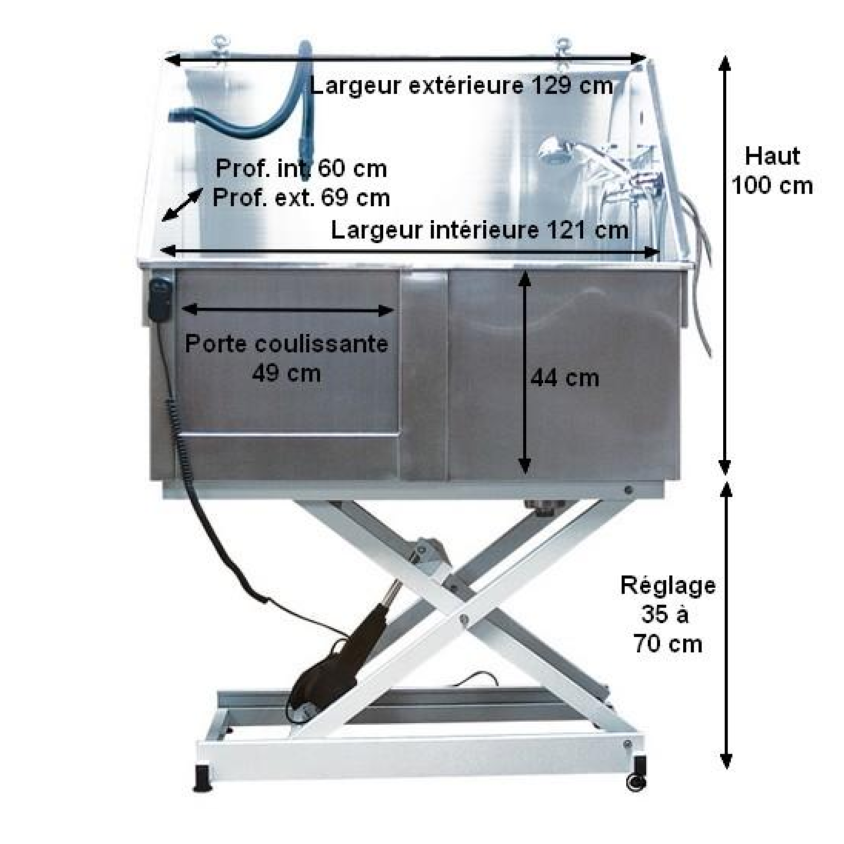

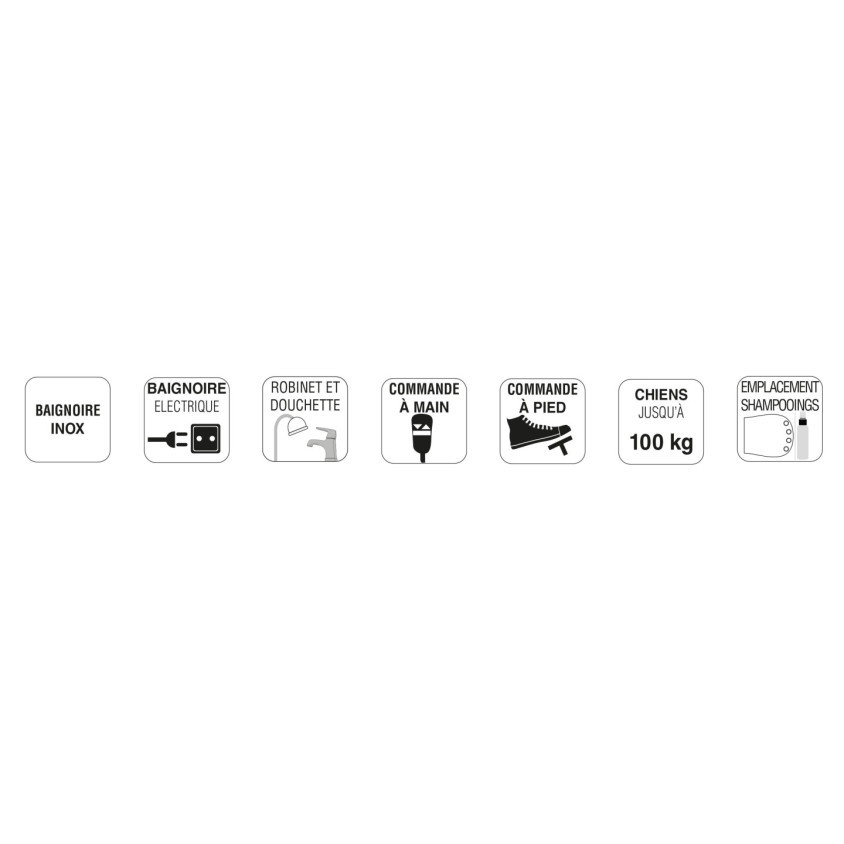

Technical Specifications
- Type: Large model tub
- Tub Material: Stainless steel
- Chassis: X-shaped with extra-low voltage electric motor
- Control: Waterproof hand control
- Height Adjustment: From 35 to 70 cm
- Fittings:
- Mixer Tap: With 15/21 male connectors
- Hand Shower: With holder and 1.60 m flexible hose
- Accessory: Soap or shampoo holder
- Drain Hole:
- Position: Right side of the tub
- Equipment: Filter basket
- Drainage: 16 cm from the floor
- Included Accessories: Stainless steel drain, restraint bar with two sliding rings, four-element grating
Installation and Connection
Assembly and connection to water inlets and drainage must be carried out by a qualified professional.
The installation of the back panel and side panels must imperatively be carried out with prior application of a bead of colorless sanitary silicone.
The drain hole must receive a siphon (not supplied) allowing horizontal drainage of wastewater and connection to a floor siphon waiting pipe.
It is recommended to slightly unscrew the adjustment pads on the left side to give the tub a slight slope.
Maintenance
Accessories (mixer tap, hand shower, soap or shampoo holder) must be checked regularly and are not covered by the warranty.
