This inverted ventilation system is designed for fire-resistant safety cabinets, compliant with EN 14470-1 and FM 6050 standards. It offers an optimized solution for the secure storage of sensitive materials.

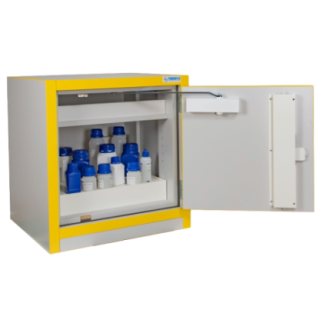

Features of Compatible Safety Cabinets
- Fire resistance: 30 minutes.
- Compliance: Compliant with EN 14470-1 and FM 6050 standards (world first).
- Seals: Thermodilating.
- Doors: Held in open position.
- Automatic closing: Thermoregulated at 50°C.
- Dimensions: Several available in the catalog and others possible on request.
- Leveling: Jacking feet.
- Locking: 3-point key lock.
- Lock: Anti-spark lock.
Compatible cabinets are available in 4 versions: low cabinet (1 or 2 doors) and high cabinet (1 or 2 doors).
Cabinet Compliance
- Tested and approved type 30 minutes according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
- Tested and approved 10 minutes according to FM 6050 (Factory Mutual International).
- Standardized pictograms: Compliant with ISO 3864, NF X08.003, directive 92/58/CEE, EN 14470-1 (04-2004) and FM specifications.
Cabinet Advantages
- Fire resistance: 30 minutes according to the standardized ISO 834 curve.
- Movement: Base with cover for easy movement by pallet truck, empty, except for "under-bench" models.
- Automatic closing: With door precedence and doors held in open position by thermal fuses triggering from 43°C (depending on model).
Passive Safety of Cabinets
- Construction: Made of insulating panels offering high resistance to chemical aggressions.
- Frame: Light grey RAL 7035 with yellow RAL 1023 edge banding.
- Signaling: By standardized symbols.
- Retention shelves: Height-adjustable in 32 mm increments.
- Retention sump: Removable in the lower part.
Active Safety of Cabinets
- Ventilation openings: Ø 100 mm for possible connection.
- Doors: Automatic closing with door precedence.
- Door holding system: In open position with automatic closing in case of fire.
- Locking: 3-point key lock.
- Lock: Anti-spark lock.
- Leveling: Jacking feet.
Morin France Inverted Ventilation System
This inverted air ventilation system is specially designed for the storage of explosive or narcotic materials. It is supplied with clamps and ducting.
Operating Principle
The system ensures a positive air flow, putting the cabinet under "overpressure" of air. Air is drawn from the outside to be injected into the cabinet equally at all levels. This method prevents odor mixing and guarantees non-contamination of products within the storage compartment.
Technical Specifications
- Version: PRO.
- Air flow: 300 m3/h.
- Included components: Clamps and ducting.
This model has been tested and approved by our professional clients.
