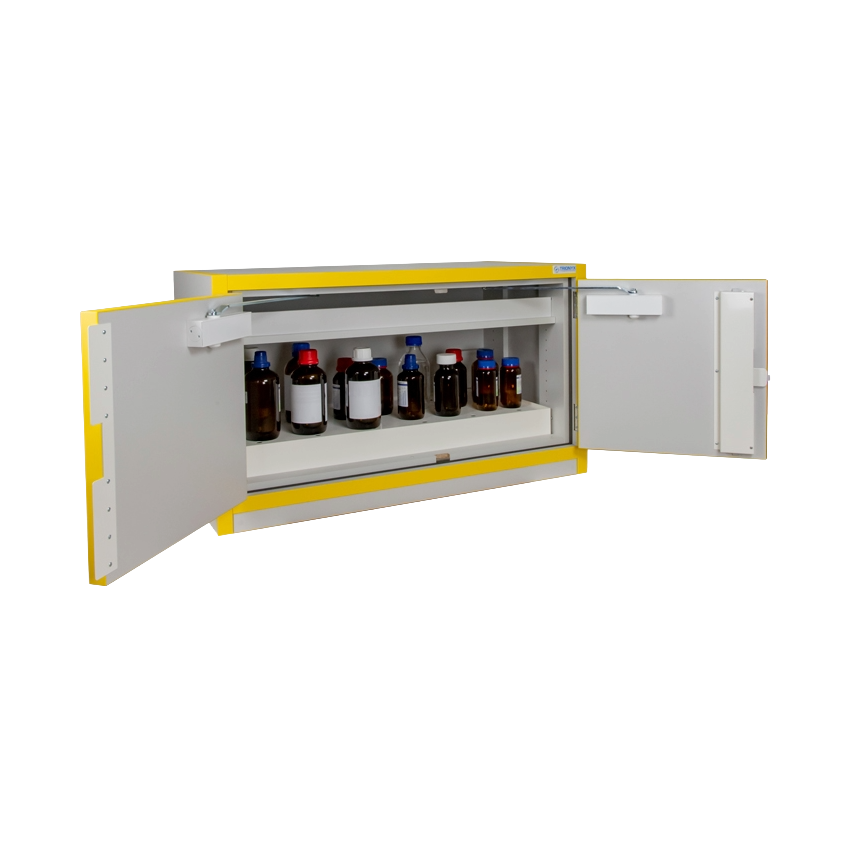

The 2-door low fireproof cabinet is a safety solution compliant with EN 14470-1 and FM 6050 standards. This model, tested and approved by professionals, offers 30 minutes fire resistance and integrates thermodilating seals. It is designed to keep doors in an open position, with automatic temperature-controlled closing at 50°C in case of an incident. Equipped with leveling feet for easy adjustment, it also features a 3-point key lock and a spark-proof lock. The complete range offers several dimensions, including low or high versions, with 1 or 2 doors.
Compliance
- Fire Resistance : Tested and approved type 30 minutes according to standard EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
- Fire Resistance : Tested and approved 10 minutes according to standard FM 6050 (Factory Mutual international).
- Pictograms : Standardized, compliant with ISO 3864, NF X08.003, directive 92/58/CEE, standard EN 14470-1 (04-2004) and FM specifications.
Advantages
- Fire Resistance : 30 minutes according to the standardized ISO 834 curve.
- Movement : Base with cover for easy movement by pallet truck, when empty (except for "under-bench" models).
- Closing : Automatic, with door precedence and doors held in open position by fusible links triggering from 43°C (depending on model).
Passive Safety
- Construction : Insulating panels offering high resistance to chemical aggressions.
- Frame : Light grey RAL 7035 with yellow RAL 1023 edge banding.
- Signaling : By standardized symbols.
- Shelves : Retention shelves adjustable in height in 32 mm increments.
- Retention Sump : Removable sump in the lower part.
Active Safety
- Ventilation : Ø 100 mm ventilation openings for possible connection.
- Doors : Automatic closing with door precedence.
- Door Hold-Open : System for holding doors in open position with automatic closing in case of fire.
- Locking : 3-point key lock.
- Lock : Spark-proof lock.
- Stability : Leveling feet for adjustment.
Technical Specifications
- Version : Low 2 doors
- Exterior Dimensions : 635 x 1115 x 630 mm
- Interior Dimensions : 365 x 1050 x 420 mm
- Retention Sump : 1
- Maximum Load : 50 kg
Reverse Ventilation System (optional)
Specially designed for the storage of explosive or narcotic materials, the inverted air ventilation system is supplied with collars and ducting. It operates on a positive airflow principle, putting the cabinet under "overpressure" of air. Air is drawn from outside to be injected into the cabinet evenly at all levels, ensuring no odor mixing and no cross-contamination of products within the compartment.
- PRO Version : 300 m3/h
- Standard Version : 215 m3/h
