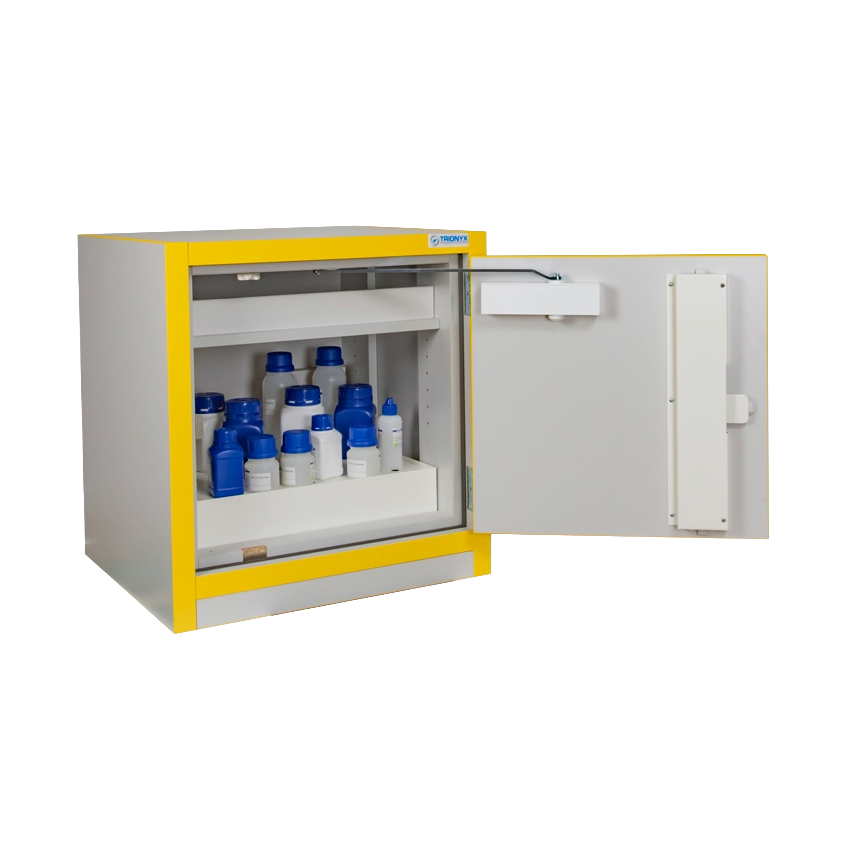

The Morin France low 1-door safety cabinet is designed for the secure storage of flammable products, offering 30 minutes of fire resistance. Compliant with EN 14470-1 and FM 6050 standards, it integrates thermo-expanding seals and an automatic temperature-regulated closing system at 50°C. This model is part of a comprehensive range including low or high cabinets, with 1 or 2 doors, and is valued by professionals.
Technical Specifications
- Type: Low cabinet 1 door
- Fire resistance: 30 minutes
- Closing: Automatic temperature-regulated at 50°C, 3-point key lock, with anti-spark lock
- Door retention: In open position by thermal fuses (triggering from 43°C)
- Construction: Insulating panels
- Frame: Light grey RAL 7035
- Edges: Yellow RAL 1023 plated
- Shelves: Retention, height adjustable in 32 mm increments
- Retention sump: Removable in the lower part
- Ventilation openings: Ø 100 mm
- Feet: Jacks for leveling
Compliance
- Fire resistance:
- Tested and approved type 30 minutes according to standard EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
- Tested and approved 10 minutes according to standard FM 6050 (Factory Mutual International).
- Pictograms: Standardized, compliant with ISO 3864, NF X08.003, directive 92/58/CEE, standard EN 14470-1 (04-2004) and FM specifications.
Advantages
- 30 minutes fire resistance according to the standardized ISO 834 curve.
- Base with cover for easy movement by pallet truck, empty (except for "under-bench" models).
- Automatic closing cabinets, with door precedence and door retention in the open position thanks to thermal fuses triggering from 43°C (depending on model).
Passive Safety
- Construction with insulating panels offering high resistance to chemical aggressions.
- Light grey RAL 7035 frame with yellow RAL 1023 plated edges.
- Signaling by standardized symbols.
- Retention shelves adjustable in height in 32 mm increments.
- Removable retention sump in the lower part.
Active Safety
- Ventilation openings Ø 100 mm for eventual connection.
- Automatic closing doors with door precedence.
- Door retention system in the open position with automatic closing in case of fire.
- 3-point key lock.
- Anti-spark lock.
- Jacks for leveling.
Dimensions and Characteristics
- External dimensions: 635 x 605 x 630 mm
- Internal dimensions: 365 x 45 x 420 mm
- Retention sump: 1
- Maximum load: 30 kg
Reverse Ventilation System (optional)
This system is specially designed for the storage of explosive or narcotic materials. It is delivered with clamps and ducting.
It operates on a positive airflow principle, putting the cabinet under air "overpressure".
Air is drawn from outside to be injected into the cabinet in an equitable manner at all levels.
This prevents odor mixing and ensures non-contamination of products within the compartment.
- Available versions:
- PRO: 300 m3/h
- Standard: 215 m3/h
