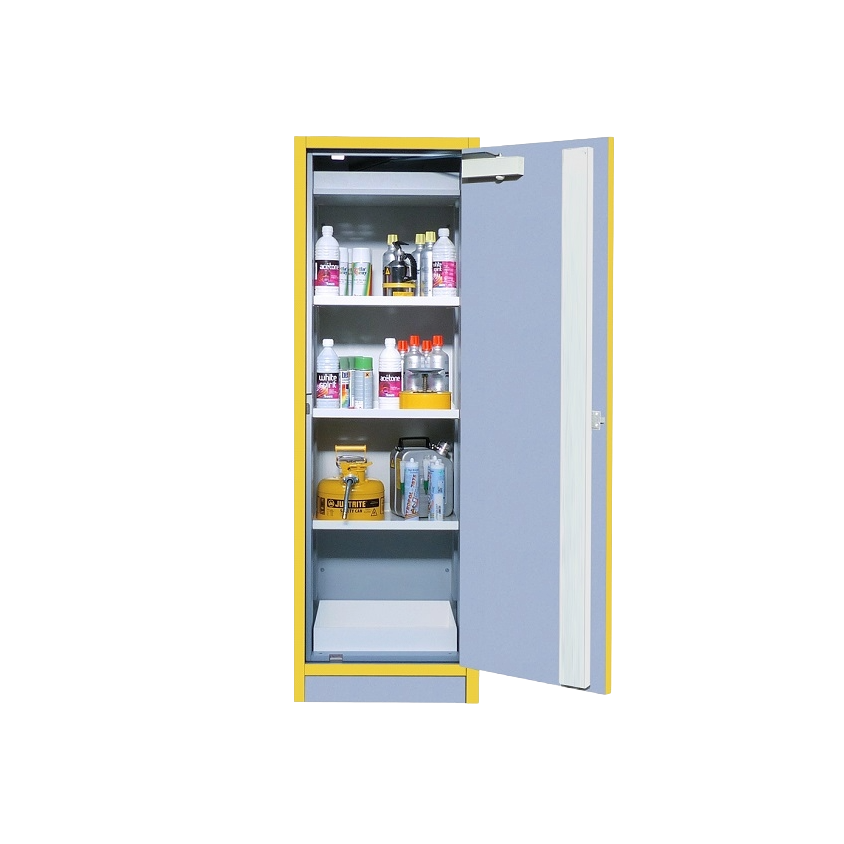

The 1-door tall safety cabinet is designed for the secure storage of products, offering 30 minutes of fire resistance. It complies with EN 14470-1 and FM 6050 standards, representing a world first for this dual compliance.
This cabinet integrates thermodilating seals and a system for holding doors in the open position with automatic temperature-controlled closing at 50°C in case of fire. It is equipped with leveling feet for precise adjustment and a 3-point key lock with a spark-proof lock.
Compliance
- Fire Resistance : 30 minutes according to the ISO 834 standardized curve.
- 30-minute type approval : Compliant with EN 14470-1 (04/2004) and EN 1363-1 (06/2000) standards.
- 10-minute approval : Compliant with FM 6050 (Factory Mutual International) standard.
- Standardized pictograms : Compliant with ISO 3864, NF X08.003, Directive 92/58/CEE, EN 14470-1 (04-2004) standard, and FM specifications.
Advantages
- Fire Resistance : 30 minutes according to the ISO 834 standardized curve.
- Movement : Base with cover for easy movement by pallet truck, when empty (except for "under-bench" models).
- Automatic closing : Cabinets with automatic closing, with predominance of the leaves and doors held in the open position by thermofusibles triggering from 43°C (depending on model).
Passive Safety
- Construction : Insulating panels offering high resistance to chemical aggressions.
- Frame : Light grey RAL 7035 with yellow RAL 1023 edged panels.
- Signaling : Standardized symbols.
- Shelves : Retention adjustable in height in 32 mm increments.
- Retention sump : Removable in the lower part.
Active Safety
- Ventilation : Ø 100 mm ventilation openings for possible connection.
- Doors : Automatic closing with predominance of the leaves.
- Door retention : System for holding doors in the open position with automatic closing in case of fire.
- Locking : 3-point key lock.
- Lock : Spark-proof lock.
- Stability : Leveling feet for adjustment.
Technical Specifications
- Model : Tall Version 1 door
- External dimensions (W x D x H) : 605 x 550 x 1980 mm
- Internal dimensions (W x D x H) : 495 x 420 x 1580 mm
- Shelves : 3 shelves
- Admissible load per shelf : 30 kg
- Retention sump : 1 retention sump
Reverse Ventilation System (optional)
The inverted air ventilation system is specially designed for the storage of explosive or narcotic materials. It is supplied with clamps and ducting.
Its principle is based on a positive airflow, putting the cabinet under "overpressure" of air. Air is drawn from outside to be injected into the cabinet evenly at all levels. This ensures no mixing of odors and no cross-contamination of products within the compartment.
- PRO Version : 300 m3/h
- Standard Version : 215 m3/h
